Bio-Rad Gel imaging system
Date：2020/4/21
Gel Doc XR + is a fast, easy-to-use, high-resolution gel imaging system that facilitates the quantification of gel and transfer film samples.
Details

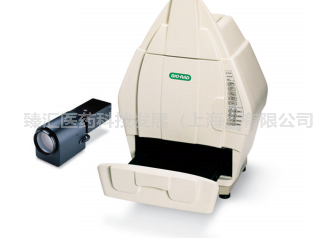

Gel Doc XR+ Gel imaging system
The user only needs to click the mouse three times to obtain the desired result according to the screen usage guide of the software: from the Image Lab software image acquisition window, click exposure, printing and analysis.
Gel Doc XR+ Gel imaging system Features
- 4 M pixel resolution
- 12-bit data output
- Linear range detection greater than 3 OD
- 19.4 x 26 cm large imaging area
- Sliding drawer provides easy placement of gel
- Standard f / 1.2 fully automatic 6x zoom lens
- Real dynamic flat field technology (US Patent No. 5,951,838)
- Illumination mode: Transmitting ultraviolet light, white light and side white light
- Support Stain-Free function
left：Flat field calibration filter right：Focus calibration plate
The flat field calibration function is realized through the flat field calibration filter to ensure the uniformity and quality of the image. The focus calibration board performs focus calibration during installation to ensure accurate real-time focusing for future use.
